Description
STANDARD FEATURES
- NEMA Premium Energy Efficiency Design
- Totally Enclosed Fan Cooled (TEFC)
- 60Hz (50 Hz Capable)
- Rated Severe Chemical Duty
- Ambient Temperature 40°C
- Installation up to 3300ft
- IP 55
- Conduit Box completely potted with epoxy filler
- Inverter Duty 15:1 CT-1.0 SF
- Designed to Class B temperature rise
- Vacuum Impregnated Stator with tropicalization coating
- Dynamically balanced and vibration tested
- Heavy Duty Cast Iron motor construction
- Heavy Duty L10 100,000 hr. life bearings
- Double-row bearings on Drive-end
- 17- 4 PH Stainless Steel 1-Piece Shaft
- Shaft threaded and keyed on drive-end for simple installation
or removal of prop
- Stainless Steel hardware & Nameplate
- Class 1, Division II, Groups A, B, C and D compliant
- Base Corrosion protection Primer coat
- 2-Part Epoxy Top Coat RAL7024 - Graphite Gray
- Space Heaters
- Class H 180°C Insulation System
- 36 Months from date of purchase

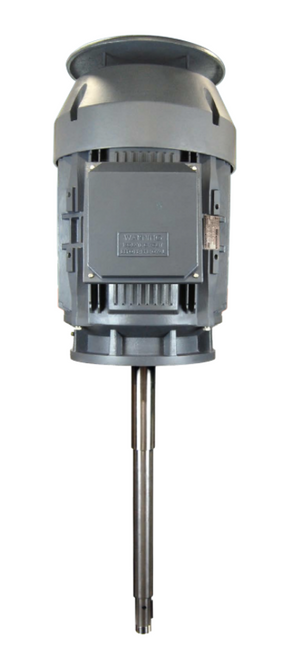

Shaft Features photo info:
Aerator Motors can be used whether you’re in need of a keyed and threaded shaft, or a pinned shaft. The motors are 100% interchangeable with the following aeratormanufactures, but with superior operating features. We replace motors that are currently used on the following OEM units: Aqua-Aerobics, Evoqua / Xylem, and Aerator Solutions
